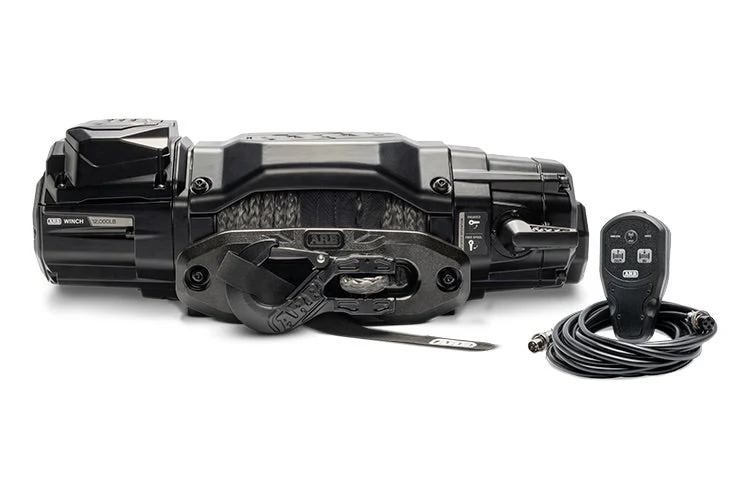

The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors. A custom Albright contactor is built in to provide seamless power, while the direct-connection design enhances motor efficiency for steady, responsive control without the need for a separate control box. The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. A gearbox-mounted brake ensures 100% load holding even in demanding conditions. Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. A remote-mounted control plug enables hidden installations, while the 2.4GHz wireless link prevents signal interference. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover.

Key Features: ARB Winch 12,000 lbs (ARW120SA)

The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.
A 500A isolation switch with universal mount is included with the ARB Winch. It comes complete with a stainless lanyard and dust cover for safe and reliable operation.
Gearbox-mounted brake ensures 100% load holding and allows powered unspooling under no load without damaging the winch, easing unspooling efforts.
4-Stage Gearbox with hardened steel gears provides superior load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power.
Dual connection remote with 2.4GHz wireless with sealed receiver circuitry for a stronger, secure connection eliminating interference or remote conflict.
Remote mounted control plug for low profile or hidden winch mounting without losing the ability to hardwire the controller.
One piece bridging plate offers greater torsional strength.
Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.

Documents: ARB Winch 12,000 lbs (ARW120SA)

ARB Winch 12,000 lbs (ARW120SA) Installation Guide

ARB Warranty Policy

Specifications: ARB Winch 12,000 lbs (ARW120SA)

Includes Main Power Isolation Switch and Remote Mounted Control Plug

Volts	12V
Max Line Speed	65ft 7.4in / min
Weight	73.85 lbs
Material	Aluminum/steel
Color	Black
Prop 65	Yes
Waterproof Ratings	IP68 Winch Motor and Gearbox
Fairlead	Aircraft Grade Black Aluminum Hawse Fairlead
Rated Line Pull	12,000 lb
Rope	Black Synthetic (13/32 in × 91.9 ft) with Protective Sleeve
Motor	4.3kW (5.7HP)
Electrical Contactor	Albright DC Contactor 500 Amp
Brake	Gearbox Mounted 100% Load Holding Proportional Friction Brake
Gearbox	2-Stage Planetary and 2-Stage Spur
Limited Lifetime Warranty	7-Year Warranty on Electrical Components)
