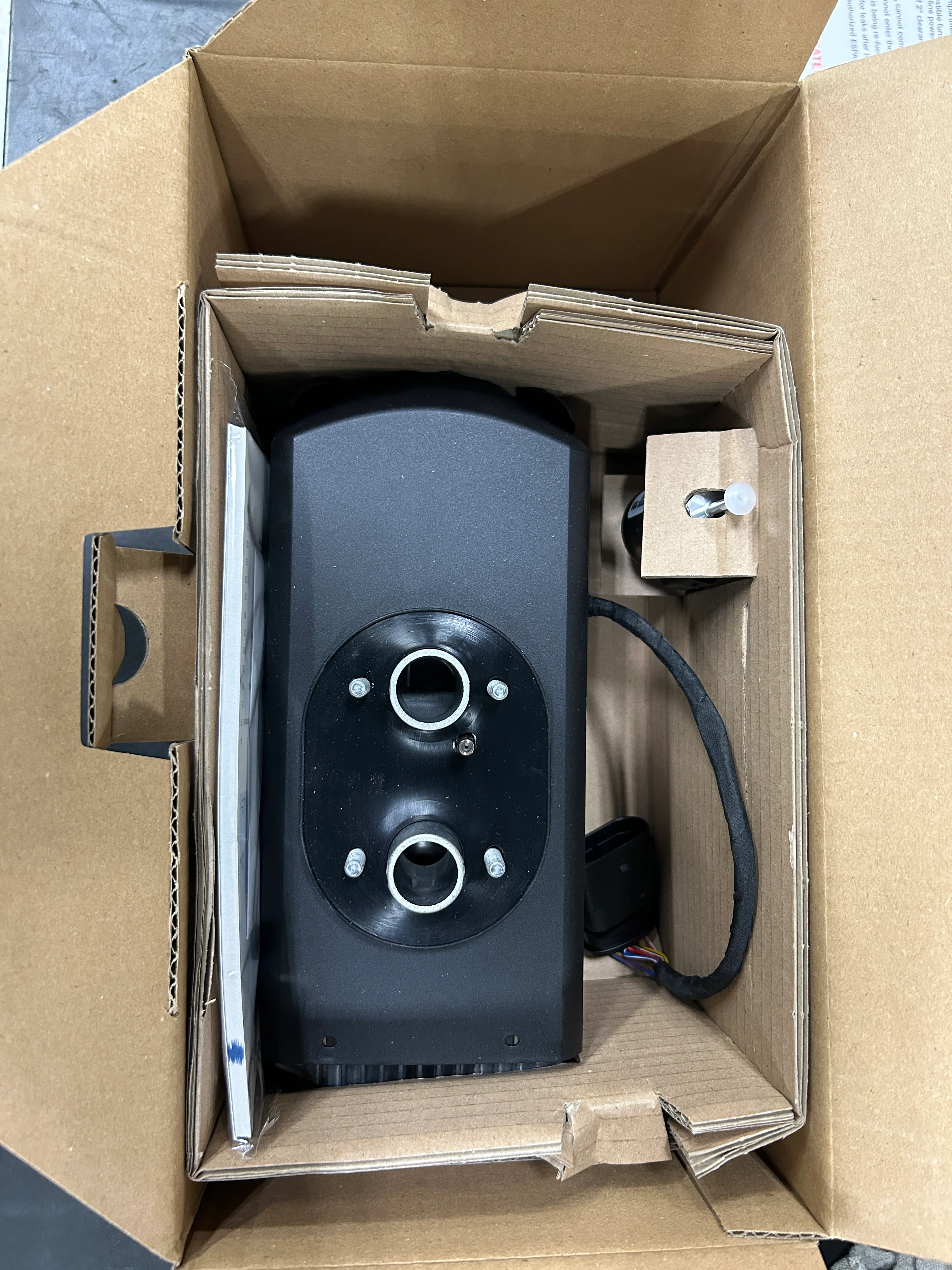

Espar Airtronic AS3-B2L Air Heater with Ford Transit Install Kit (Gas)

The Espar AS3 B2L 12V Heater- 2015+ Ford Transit Full Kit (Gasoline) is the classic way to heat the interior of your van using fuel from your main diesel tank. This kit includes everything you need to install the Espar in your Ford Transit van and will operate effectively up to ~ 13,000 ft. in elevation with the included altitude sensor.

Not all Espar kits are built the same. These units are genuine Eberspacher heaters with high-quality wiring harnesses from Eberspacher.

Key Features: Espar Airtronic AS3-B2L Air Heater with Ford Transit Install Kit (Gas)

• Fits universally where space allows
• Kit designed for 2015+ Ford Transit vans

• Efficient cabin heating on gasoline builds — no diesel tank required
• Low electrical draw (6–26 W) protects your house batteries off-grid
• Automatic altitude capability up to 13,120 ft (4,000 m) for mountain trips
• Compact body for flexible placement in van conversions and campers

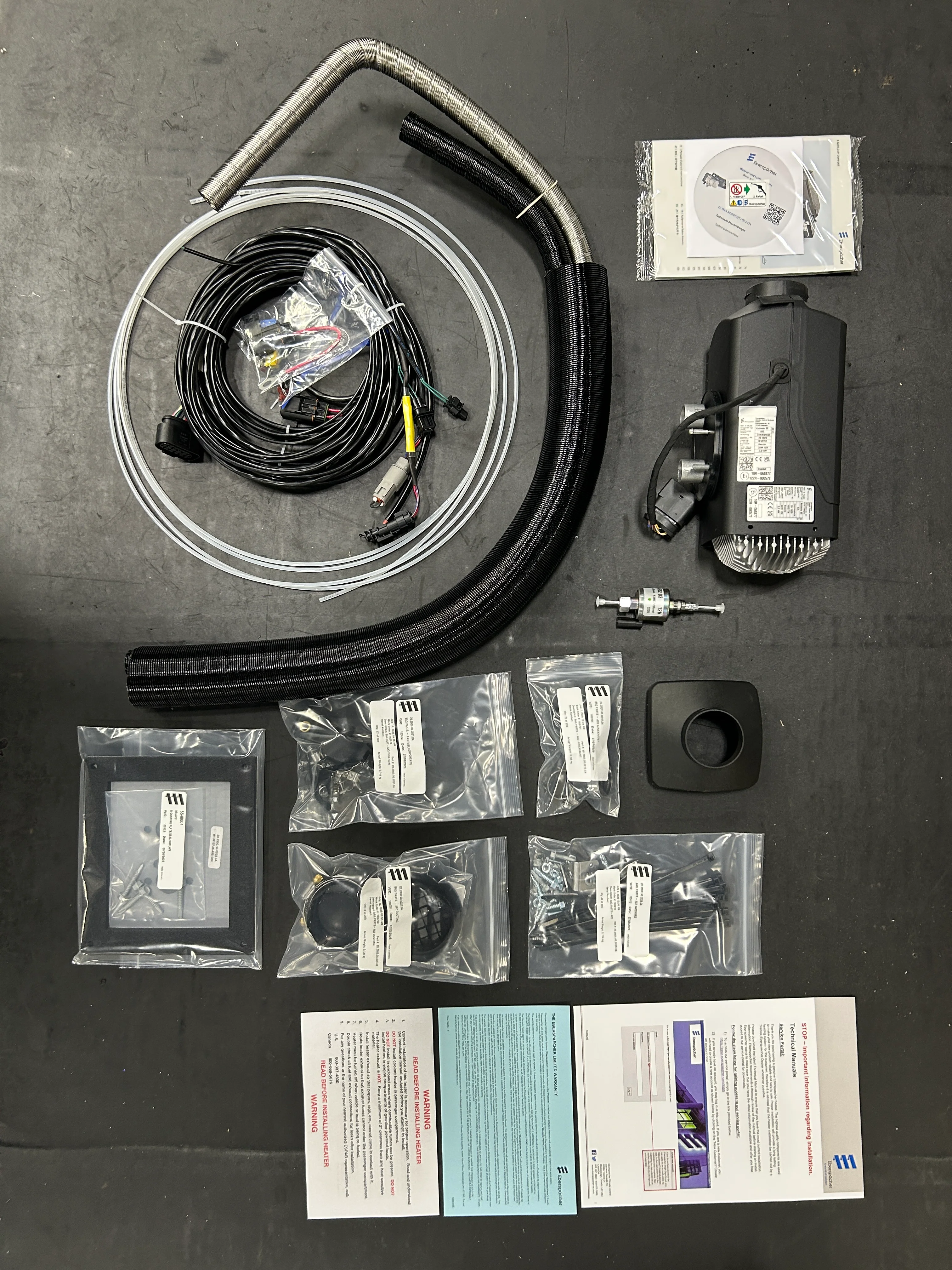

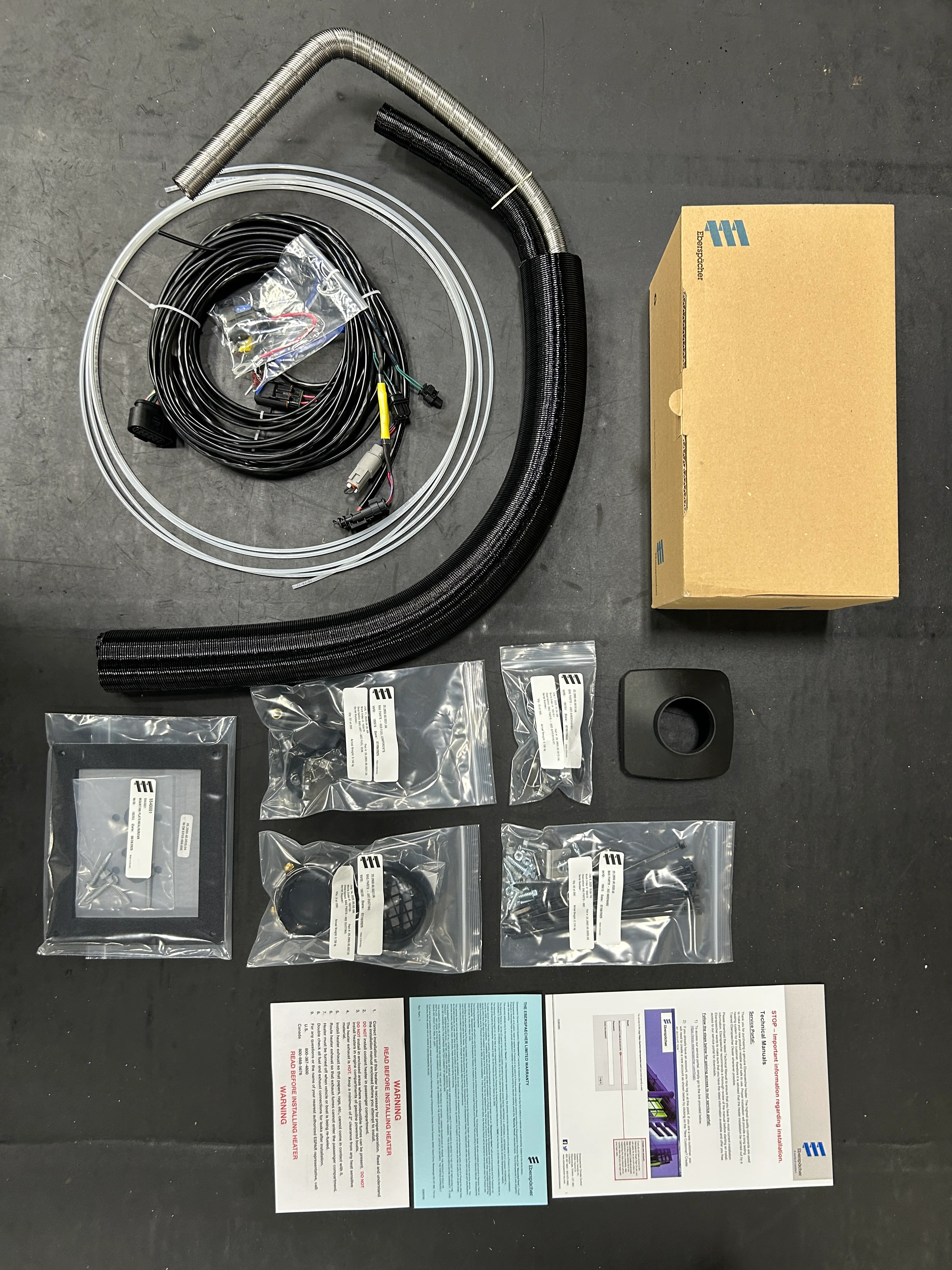

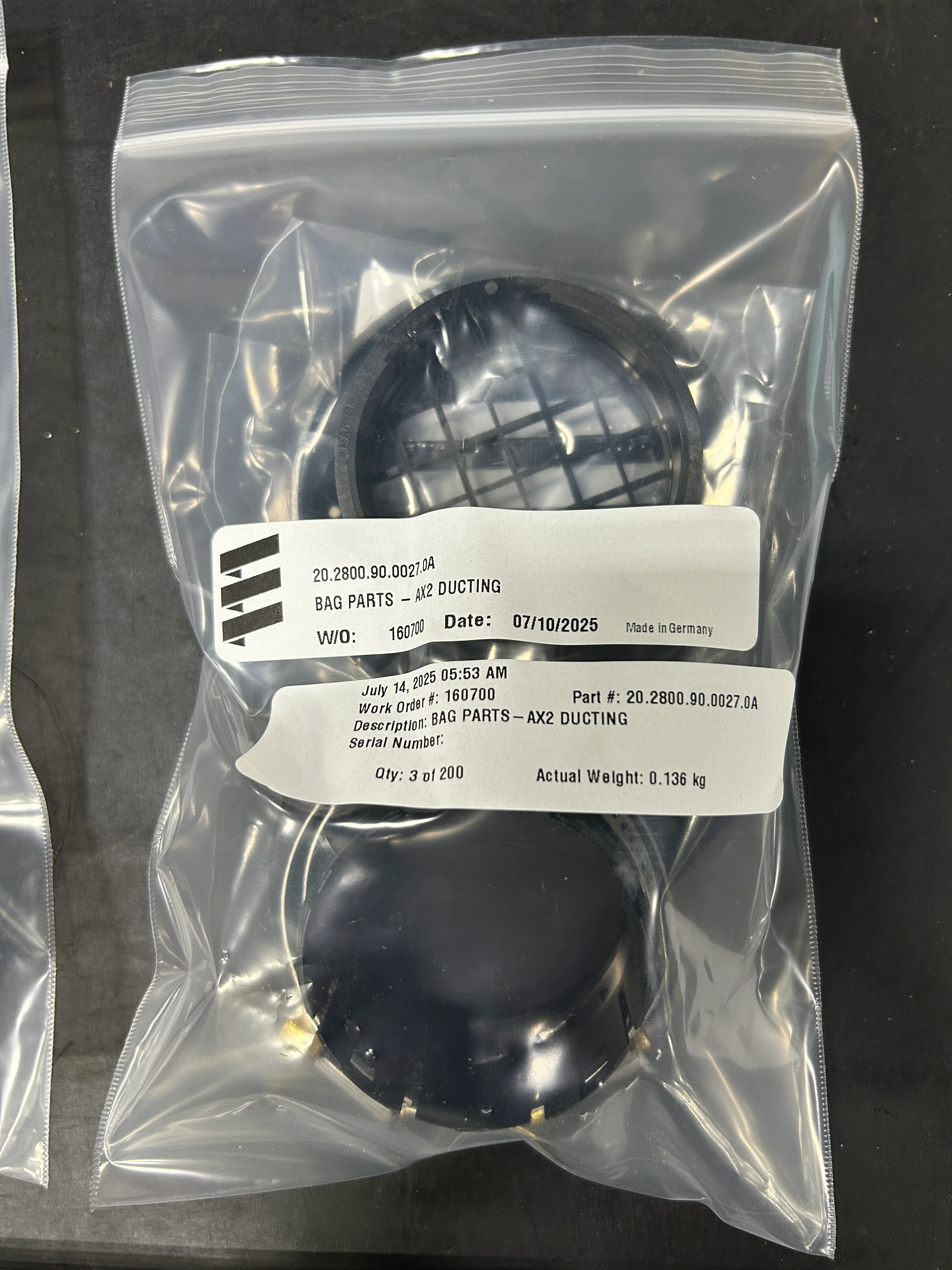

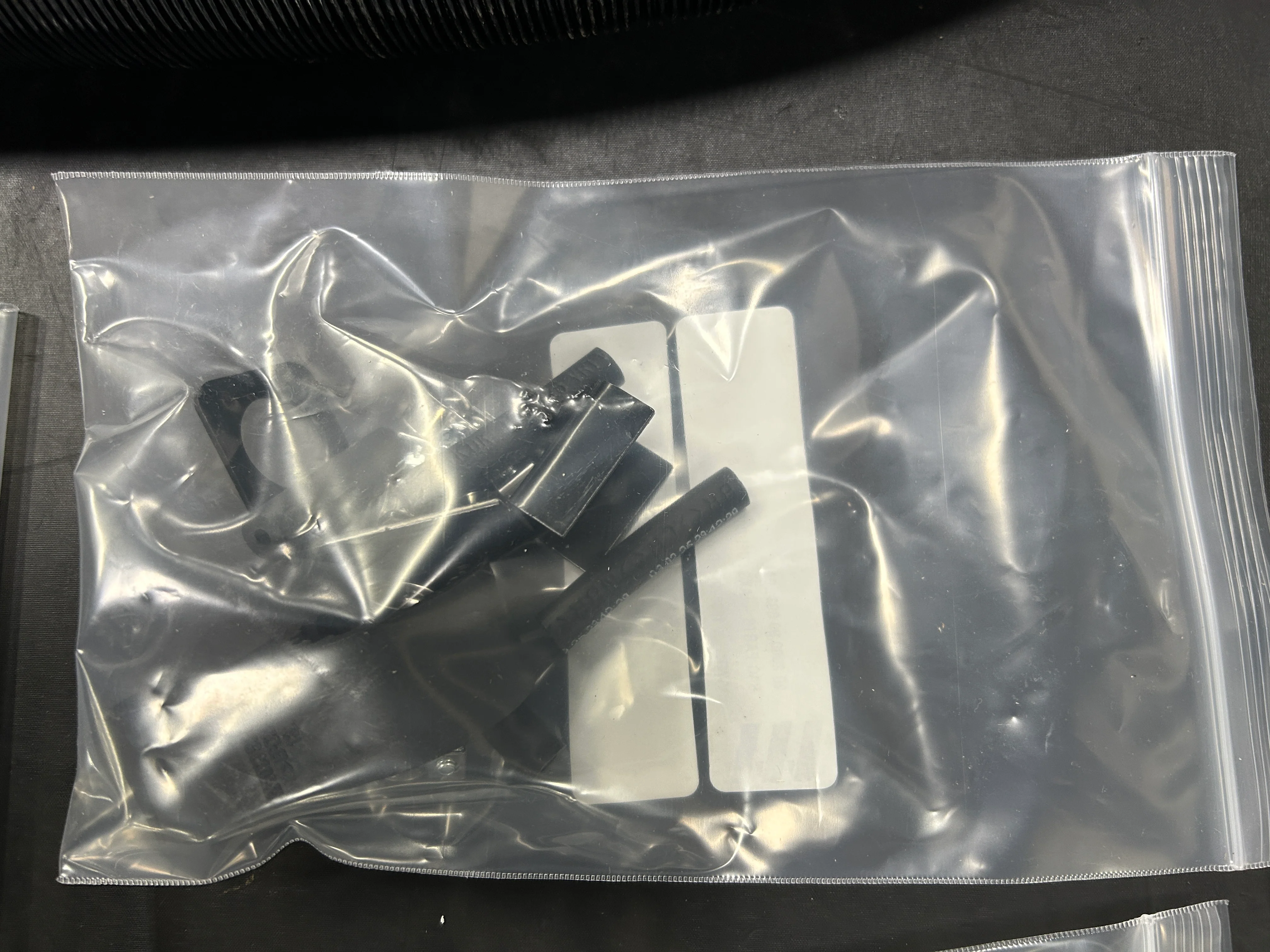

Package contents:

AS3 B2L 12V - FULL KIT:

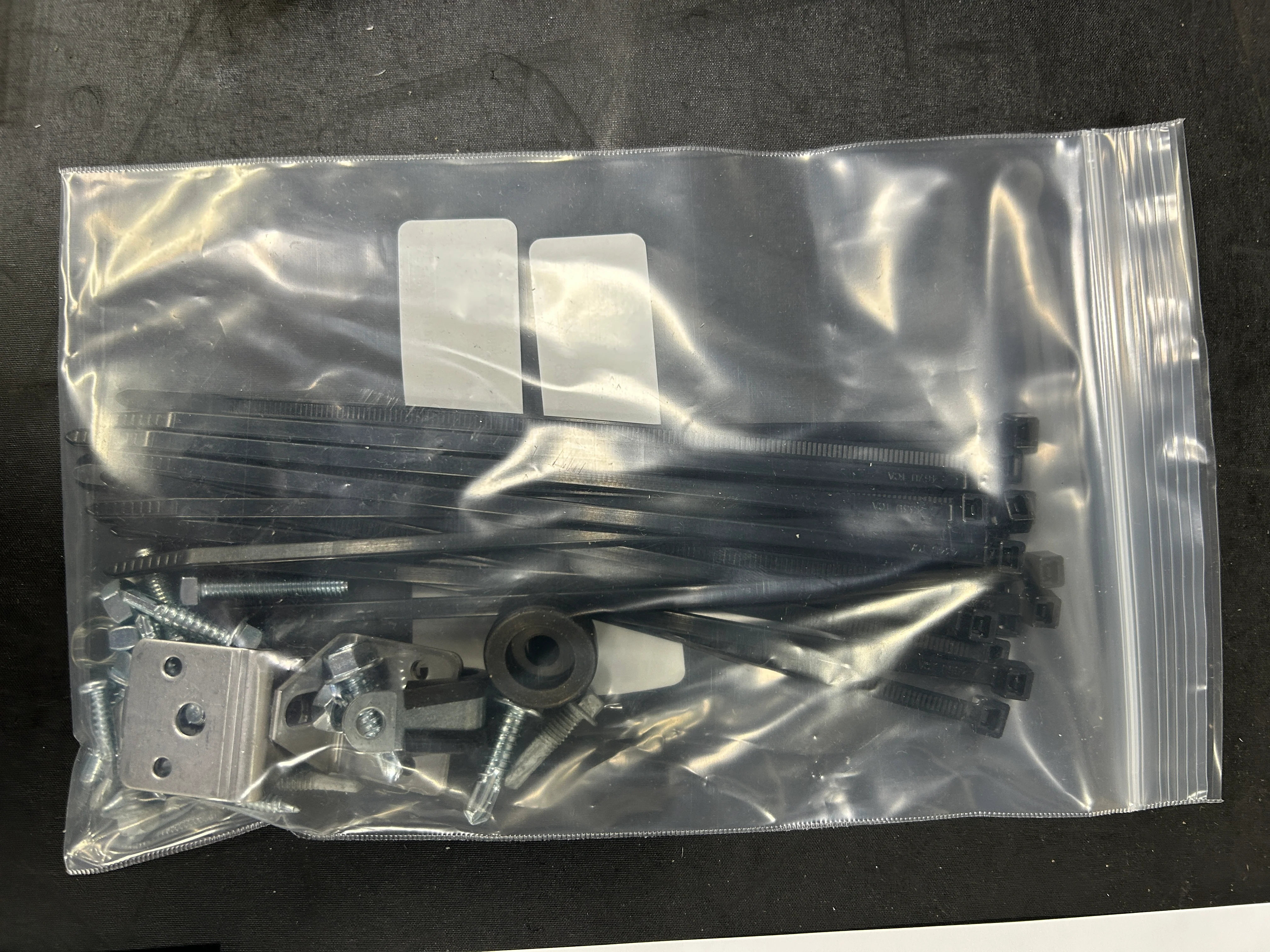

-INSTALL KIT - AIRTRONIC S3 B2L 12V
-CONTROL KIT - EASY START PRO W/ ADAPTOR

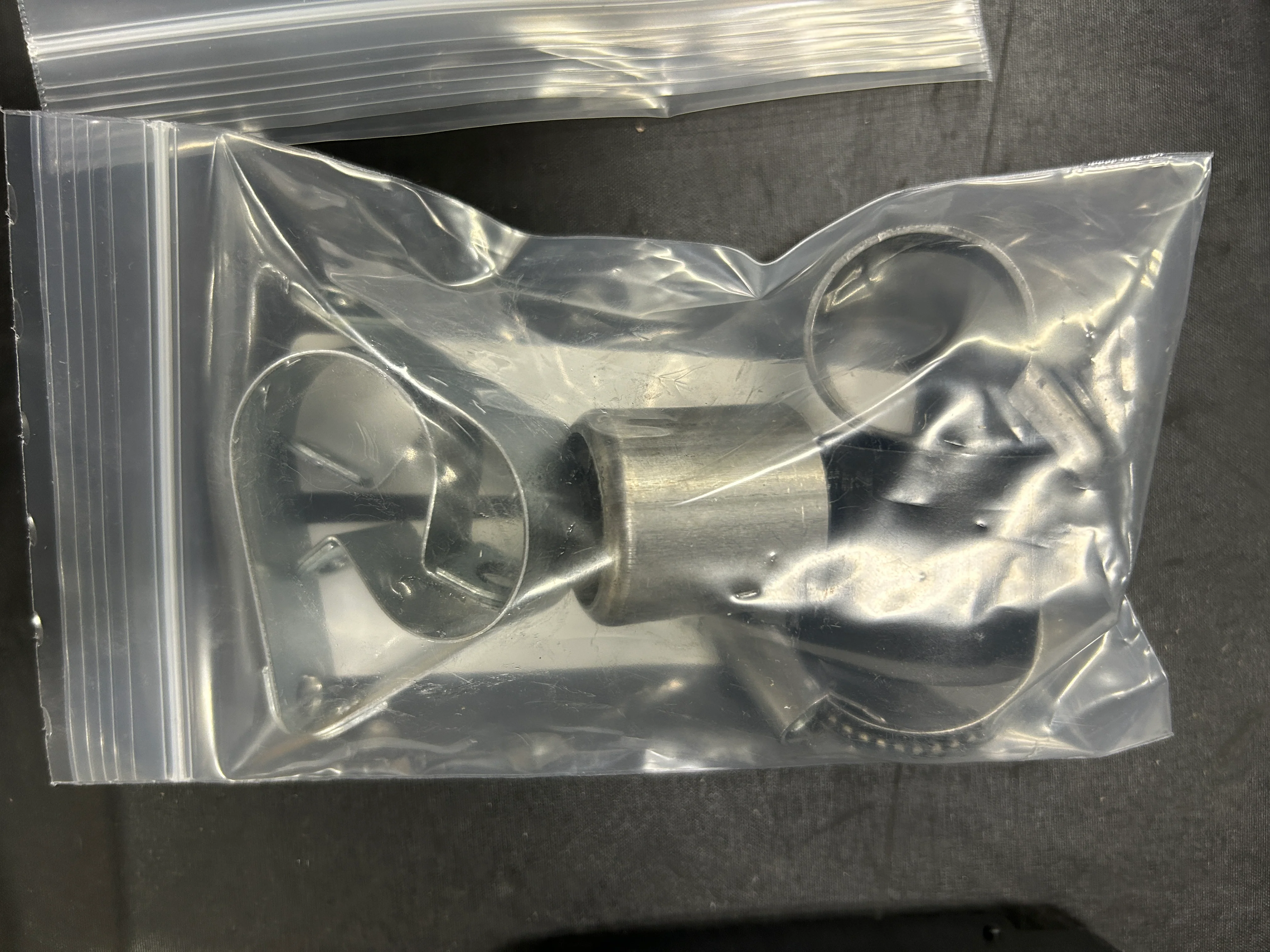

-EXHAUST MUFFLER 24MM
-26-28MM MUFFLER CLAMP (QTY 2)
-FUEL LINE ADAPTER 7.5MM - 3.5MM
-EXHAUST BRACKET
-GASFUELPICKUP

ADDITIONAL TRANSIT KIT:
-FMP ANGLE BRACKET - AFT/TANK MOUNTED
-FUEL LINE ADAPTOR 3.5-5MM (QTY 2)
-CLAMP 9MM (QTY 4)

For Transits: This kit comes with a fuel stand pipe that requires dropping the fuel tank and adapting into the existing fuel pump. Please see video and install instructions below as a guide for best installation practices.

Recommended to add insulation wrap to exterior fuel lines/connections to prevent cracking.

Documents: Espar AS3 B2L 12V Heater and Accessories

Espar Camper Van Fuel Installation Guide

Espar AS3 B2L/D2L Install Instructions

Espar AS3 B2L/D2L Operating Instructions (English, pg 30)

Espar AS3 B2L/D2L Technical Sheet

Espar AS3 B2L/D2L Troubleshooting Guide

Espar AS3 B2L/D2L Spare Parts List

Espar AS3 B2L/D2L Repair Instructions

Easy Start Pro Controller Documents

Espar Easy Start Pro Controller Guide

Espar Easy Start Pro Controller Guide Additional Info

Espar Easy Start Pro - Additional Product Info

Espar Easy Start Pro Wiring Diagram

Specifications: Espar AS3 B2L 12V (Gasoline)

Heater Dimensions (HxWxD)	121.92mm (4.8 in.)H x 309.88mm (12.2".)L x 114.808mm (4.52 in.)W
Weight	5.5 lbs (2.5 kg)
Heat Output	6824 BTU (2.0 kW)
Operating Voltage	12VDC
Rated Power Consumption	11-26W
Fuel Consumption	0.04 - 0.07 gal/h (0.14 - 0.26 l/h)
Fuel Type	Gasoline
Altitude Compensation	13,120ft (4000m)
Start Up Requirement	Glow plugs require ~30A at startup for the first minute or two.

Video: Espar Airtronic AS3-B2L - Ford Transit
