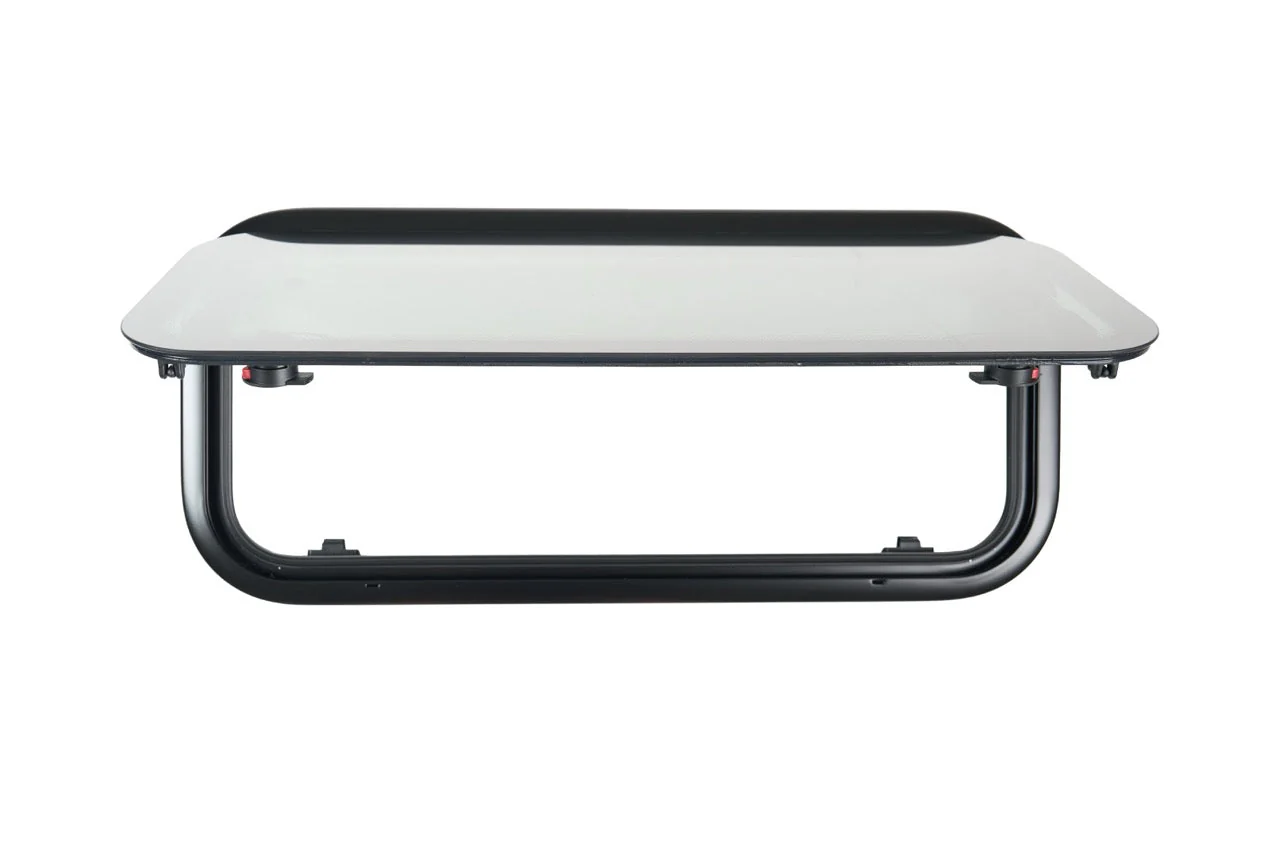

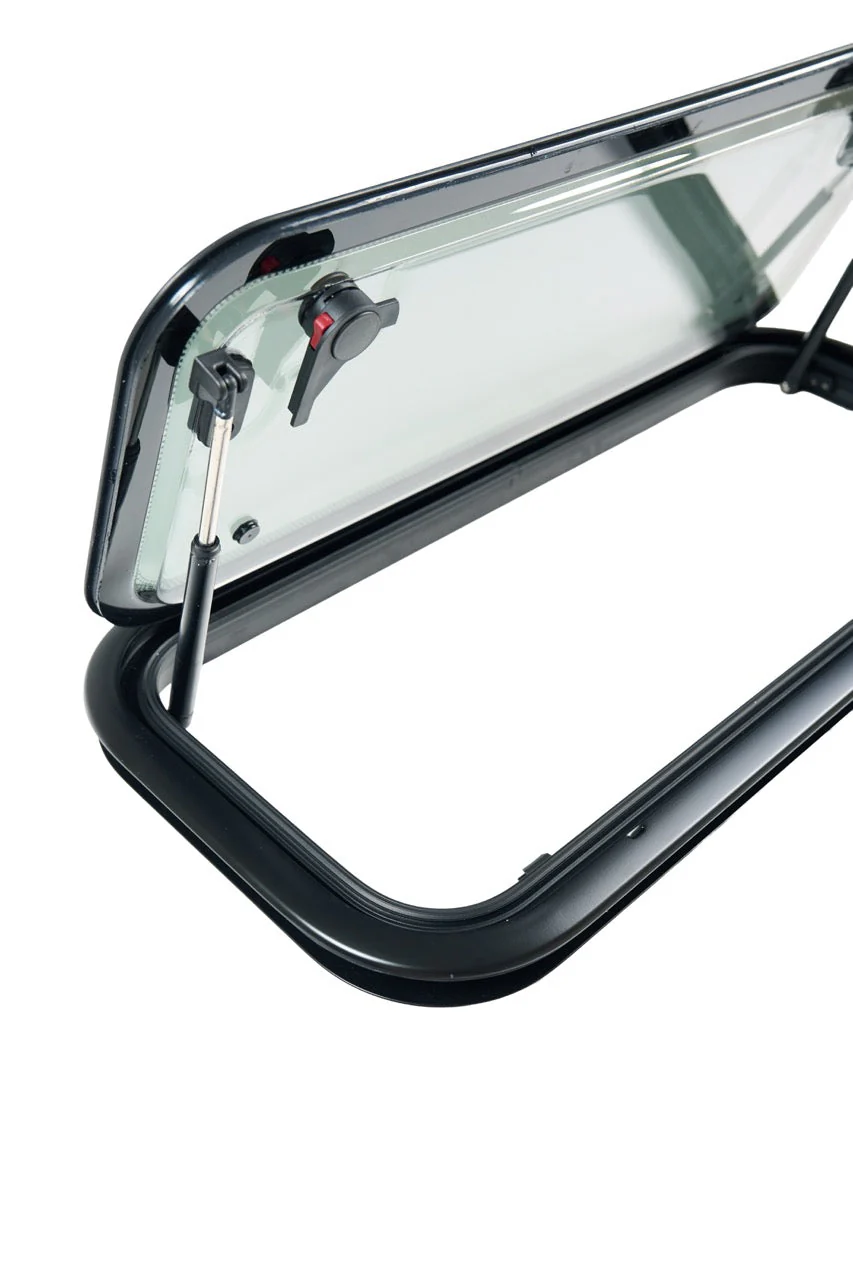

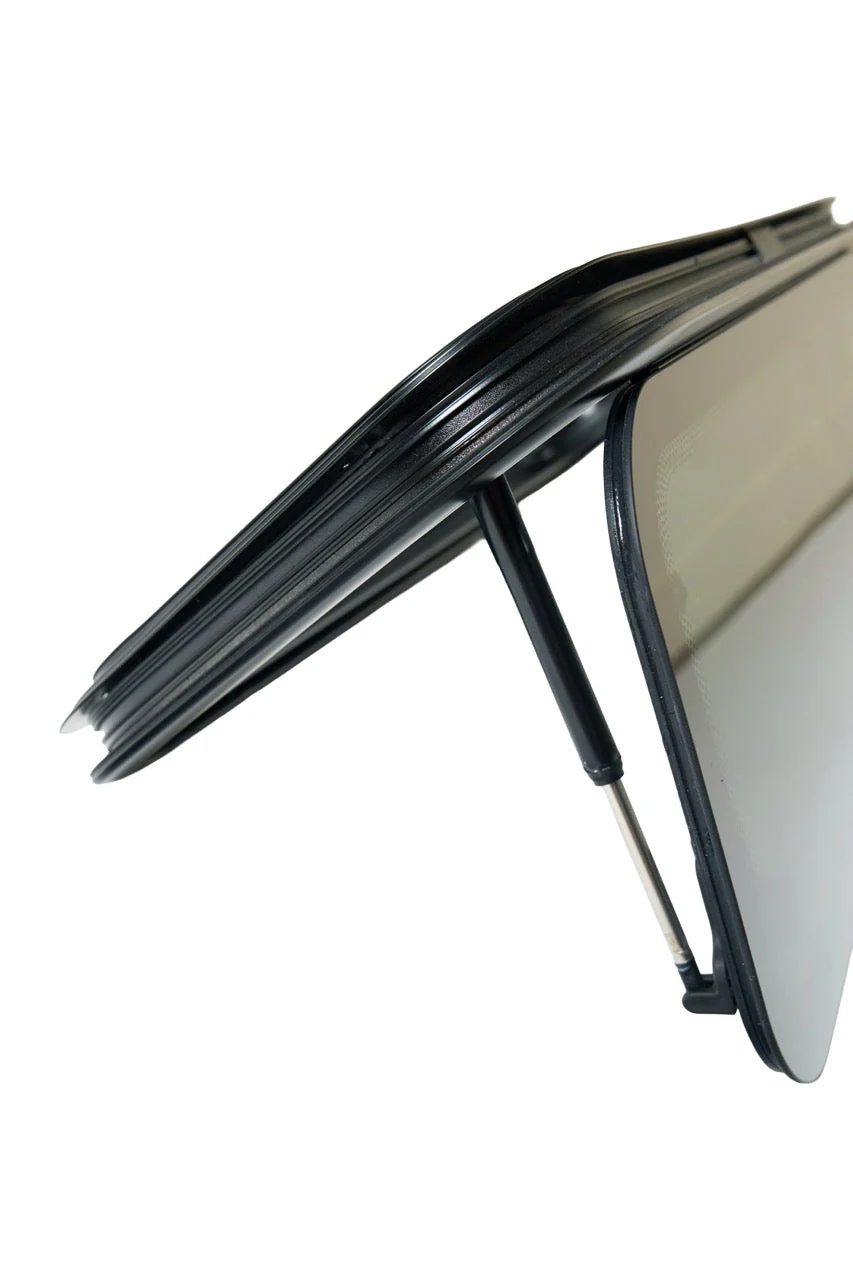

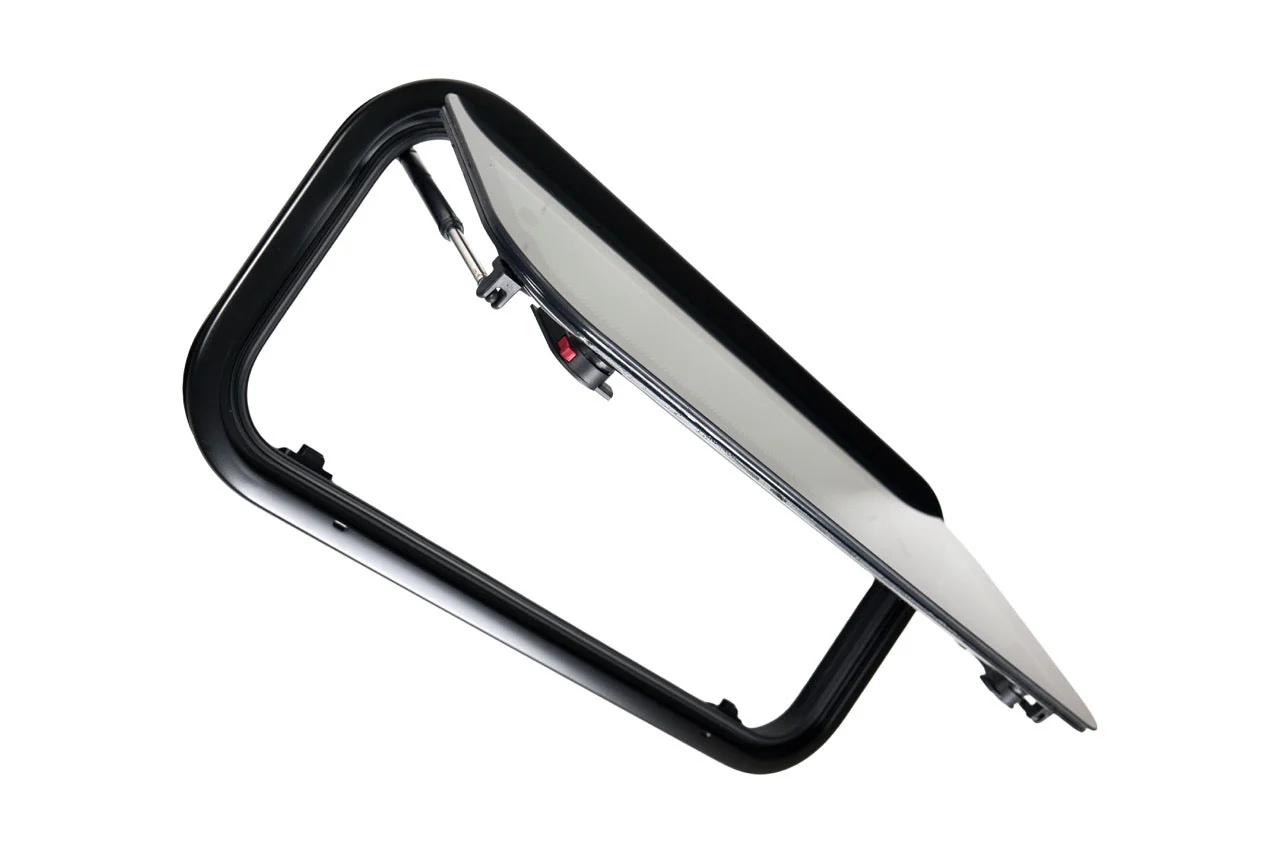

Tec Vanlife Glass & Acrylic Dual Pane Awning Window (900mm x 450mm)
-FREE Shipping to Lower 48 States
Installation guide
Introducing the TEC Vanlife Dual-Pane Glass and Acrylic Window—an industry first designed to elevate your camper van experience.
Key Features: Tec Vanlife Glass & Acrylic Dual Pane Awning Window (900mm x 450mm)
- Fits universally where space allows on modern campervans and RVs
- Innovative Dual-Pane Construction - Combines a glass exterior with an acrylic interior, providing a scratch-resistant surface outside and superior insulation inside.
- Redesigned Interior Frame - Crafted from aircraft-grade aluminum with a matte black finish, offering a sleek and durable interior aesthetic.

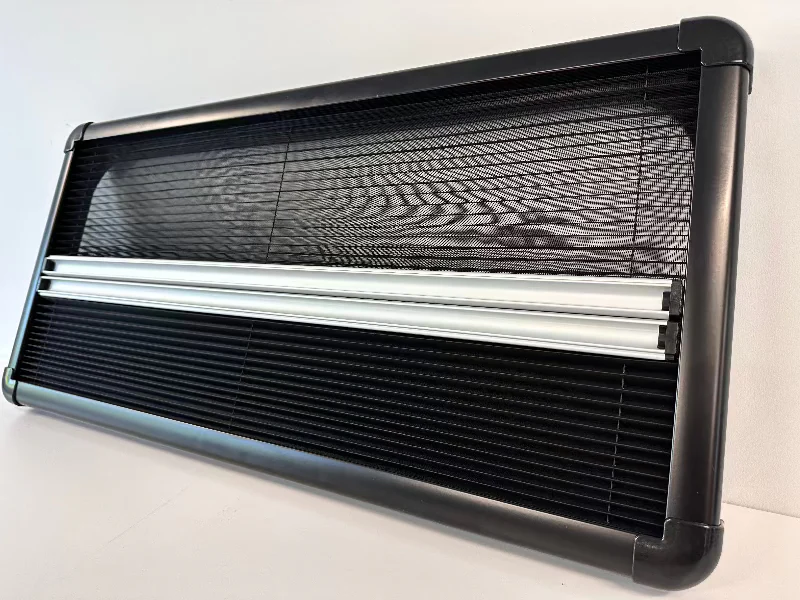

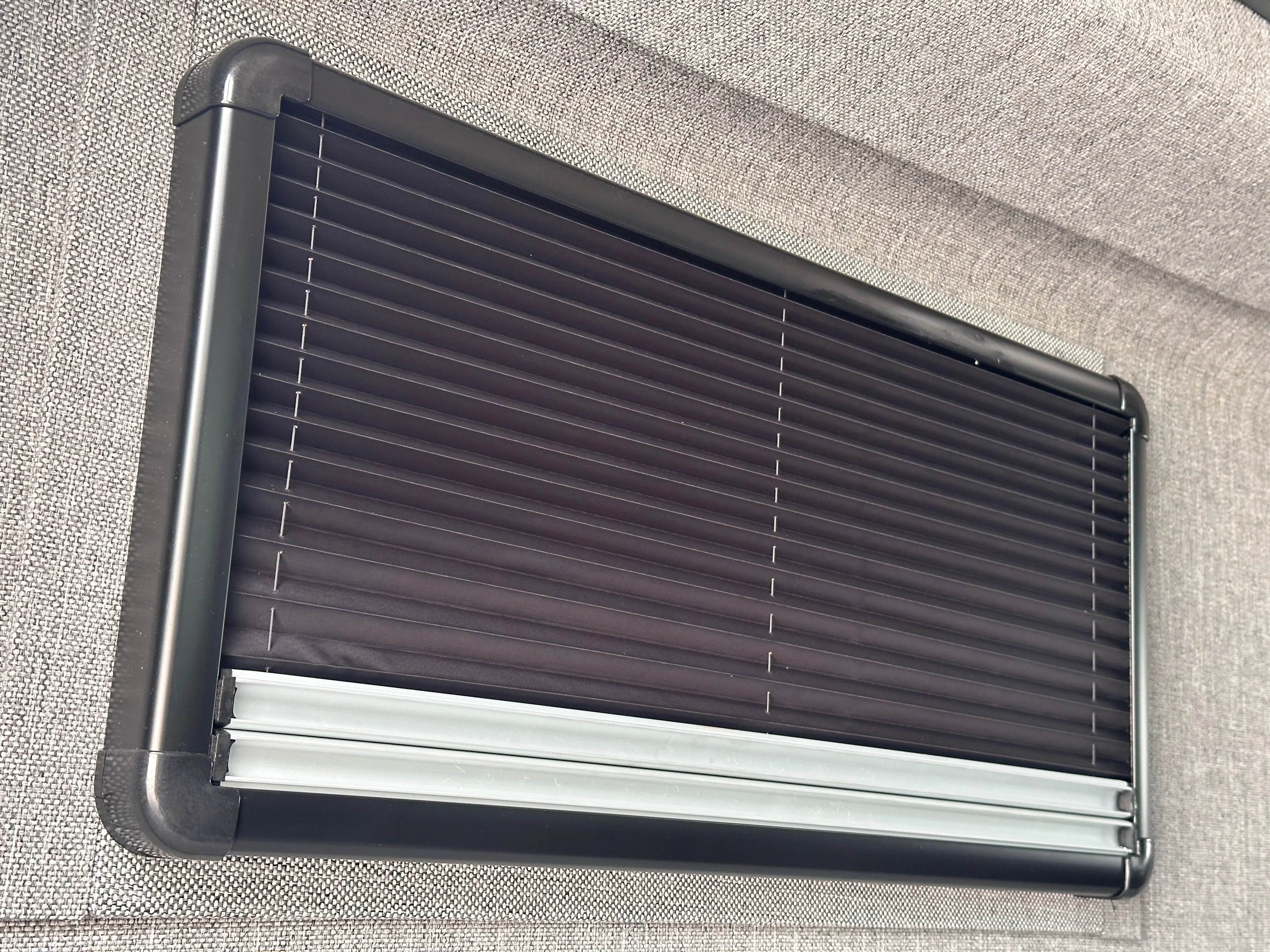

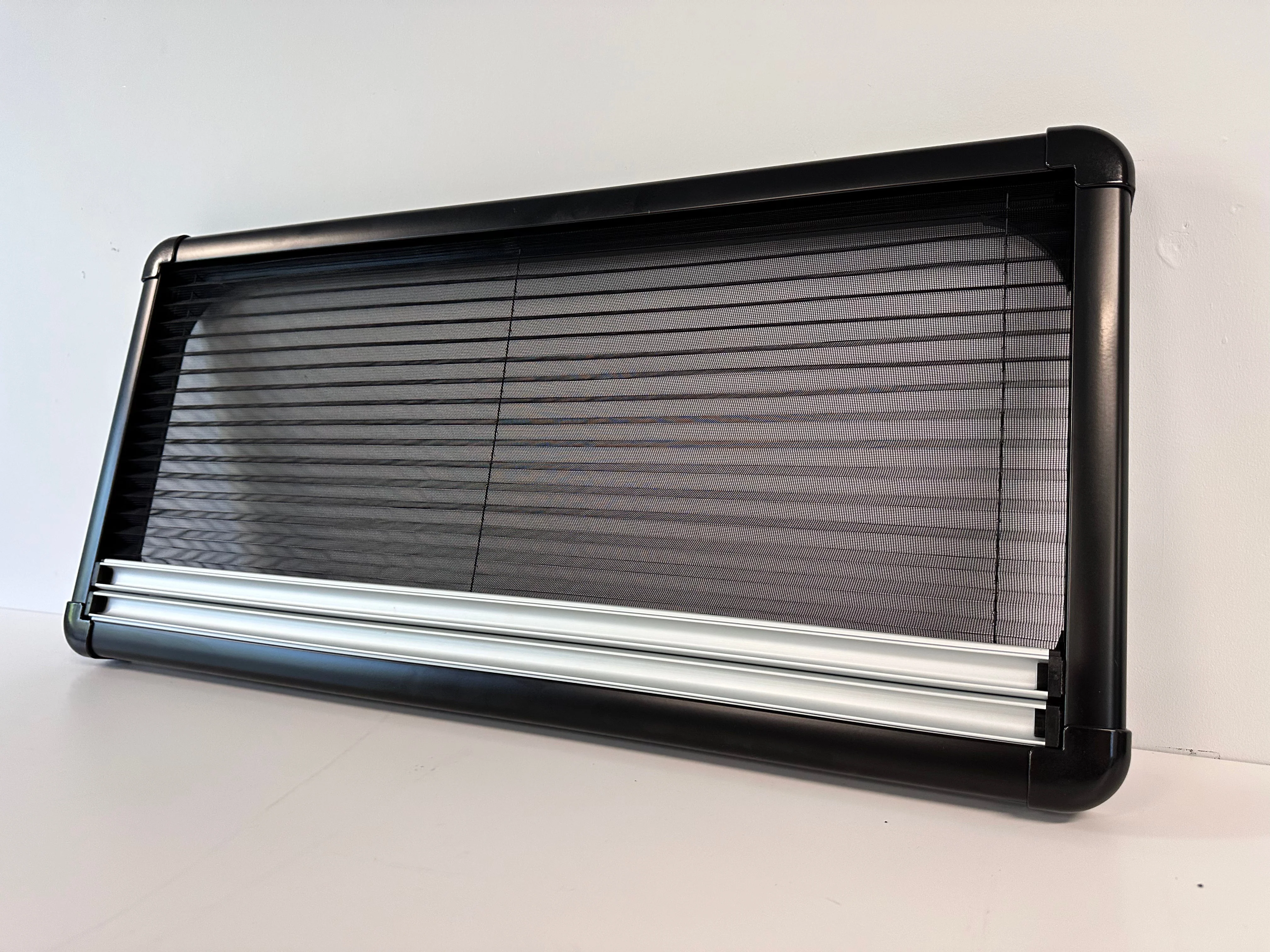

- Integrated Blinds and Bug Screen - Seamlessly built into the frame, providing privacy and protection from insects.
- 1 Year Warranty
Specifications: Tec Vanlife Glass & Acrylic Dual Pane Awning Window (900mm x 450mm)
| Exterior Dimensions | 35.43" x 17.71" (900mm x 450mm) |
| Gas Strut Type | Air |
| Rubber Gasket Included? | Yes |
| Standard Wall Thickness Range | 6 mm to 19 mm |
Section 5. Installation on Overland Vehicles or Camper Walls (Thicker Wall Thickness)
Wall Thickness: 6 mm – 19 mm1. Position the window and mark the cutout line2. Cut the opening using an air jig saw3. Cut wood shims to the required thickness to fill the gap between the window inner frame and the wall4. Insert the shims to achieve a snug and even fit5. Install the inner trim ring to clamp the window securely against the wall
Wall Thickness: 20 mm – 29 mm1. Position the window and mark the cutout line2. Cut the opening using an air jig saw3. Carefully place the window frame into the opening4. Install the inner trim ring to clamp the window securely against the wall
Why Choose the TEC Vanlife Dual-Pane Window?
This window is engineered to enhance your camper van's functionality and aesthetics. The dual-pane design offers the durability of glass and the insulation benefits of acrylic, ensuring comfort across various climates. The redesigned frame not only adds a modern touch but also integrates blinds and a bug screen for convenience.
Upgrade your camper van with the TEC Vanlife Dual-Pane Window and experience the perfect blend of innovation, quality, and style.
DOT Approved
Rest assured, the TEC Vanlife Dual-Pane Window meets the Department of Transportation (DOT) standards for safety and quality, ensuring compliance with industry regulations.
Upgrade your camper van with the TEC Vanlife Dual-Pane Window and experience the perfect blend of innovation, quality, and style.
