Van Compass 2015-2022 Mercedes Sprinter 170" - 4X4 Rocker Guards

Part#
For Non-Lifted models: VCMP-4090
For new or existing Van Compass 2" Lifts: VCMP-4090-02

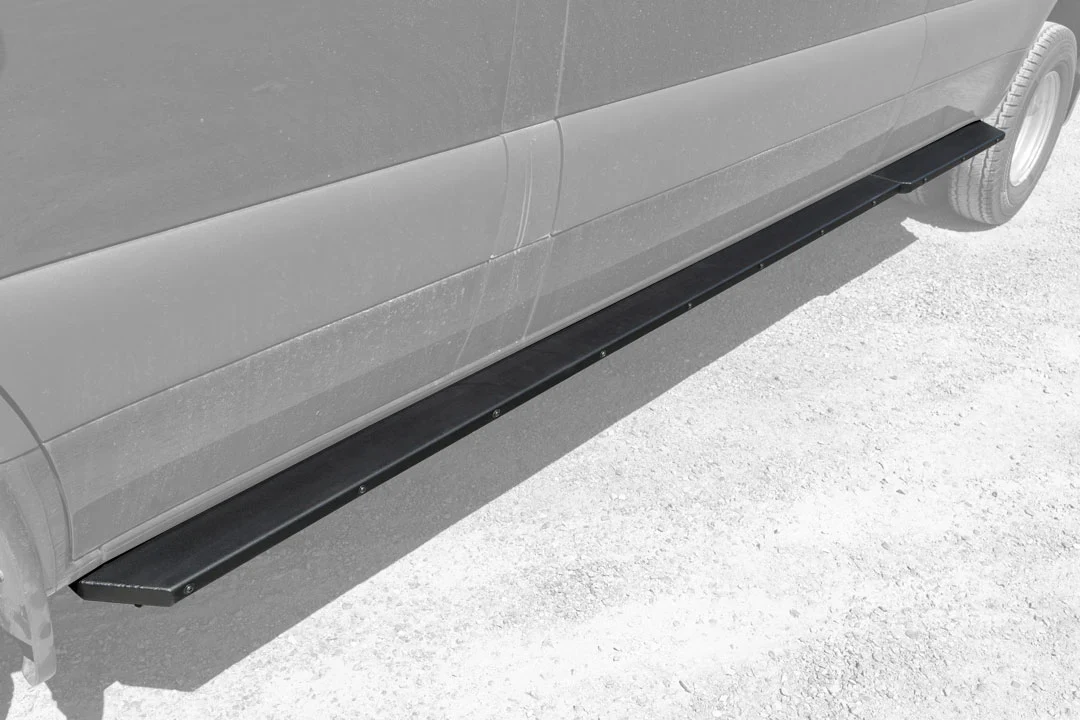

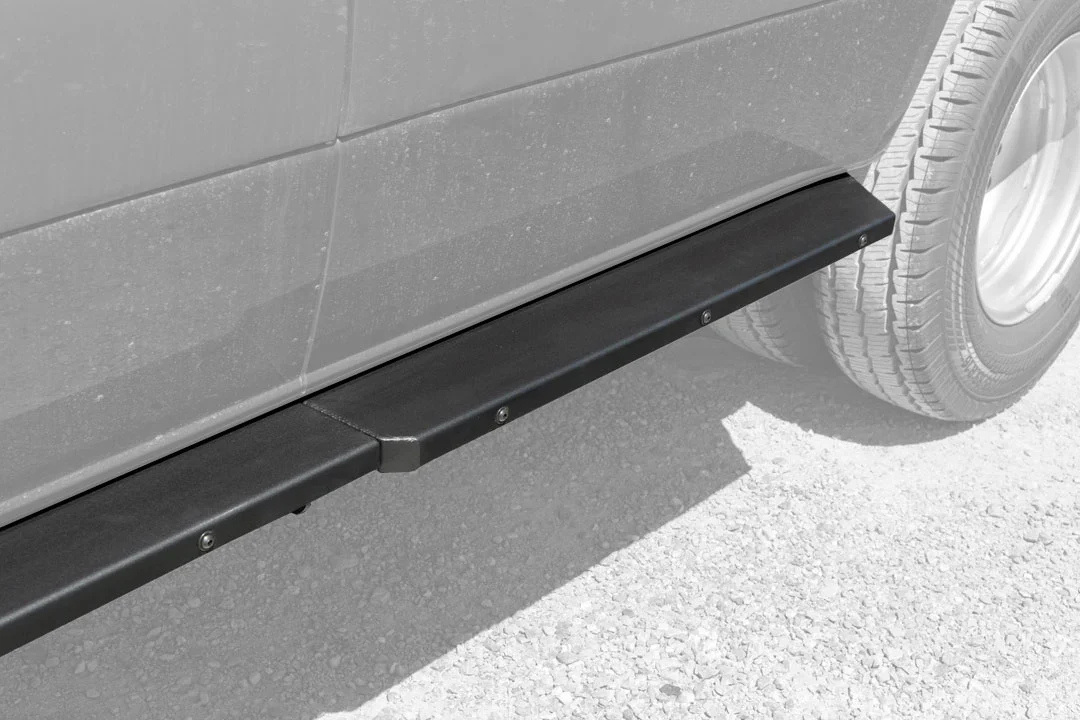

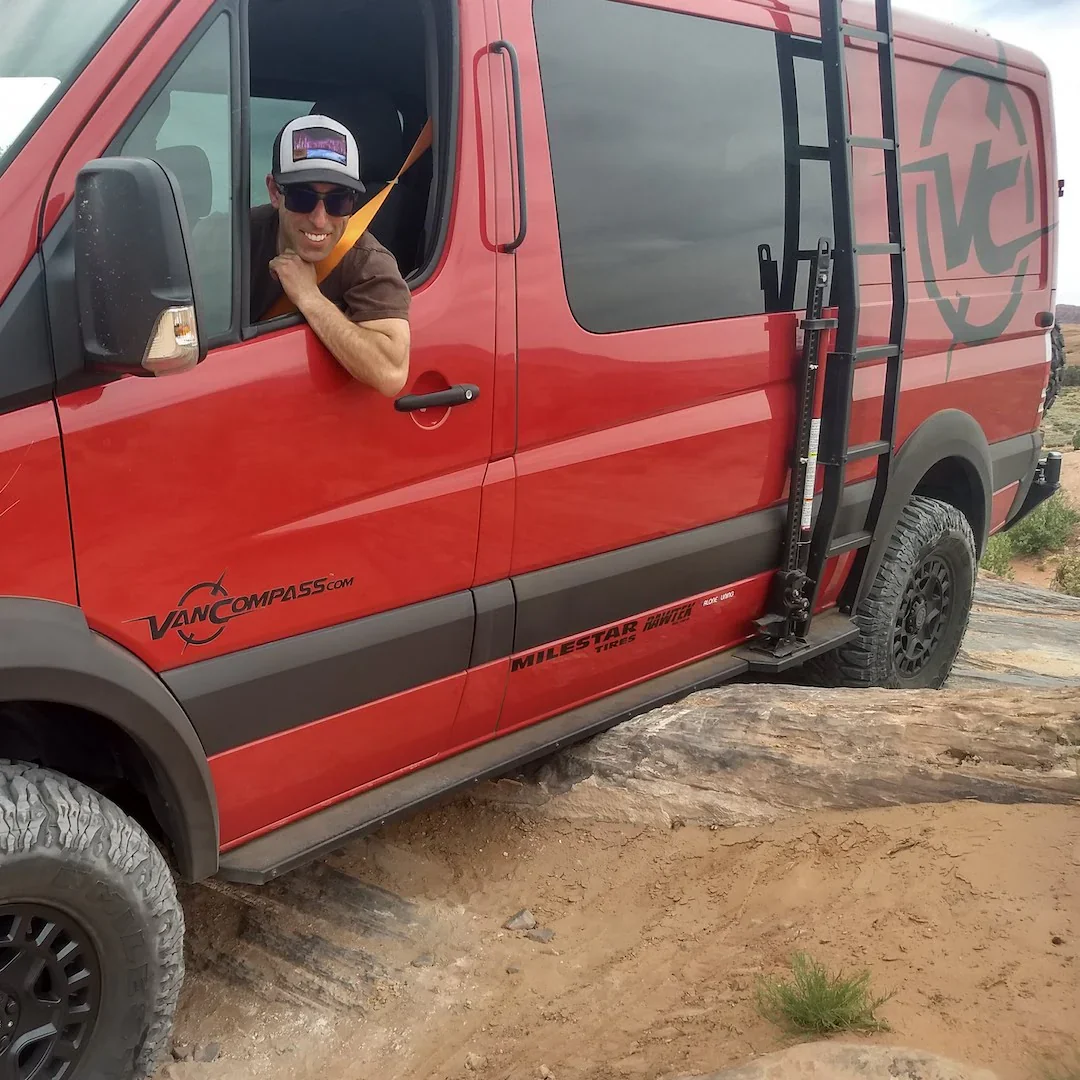

Need rocker guards for your Mercedes Sprinter AWD (2015-2022)? The Van Compass 2015-2022 Mercedes Sprinter 170" - 4X4 Rocker Guards adds functional protection, chassis rigidity and ease of access to your 170" wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1" of width for additional protection on tight trails. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

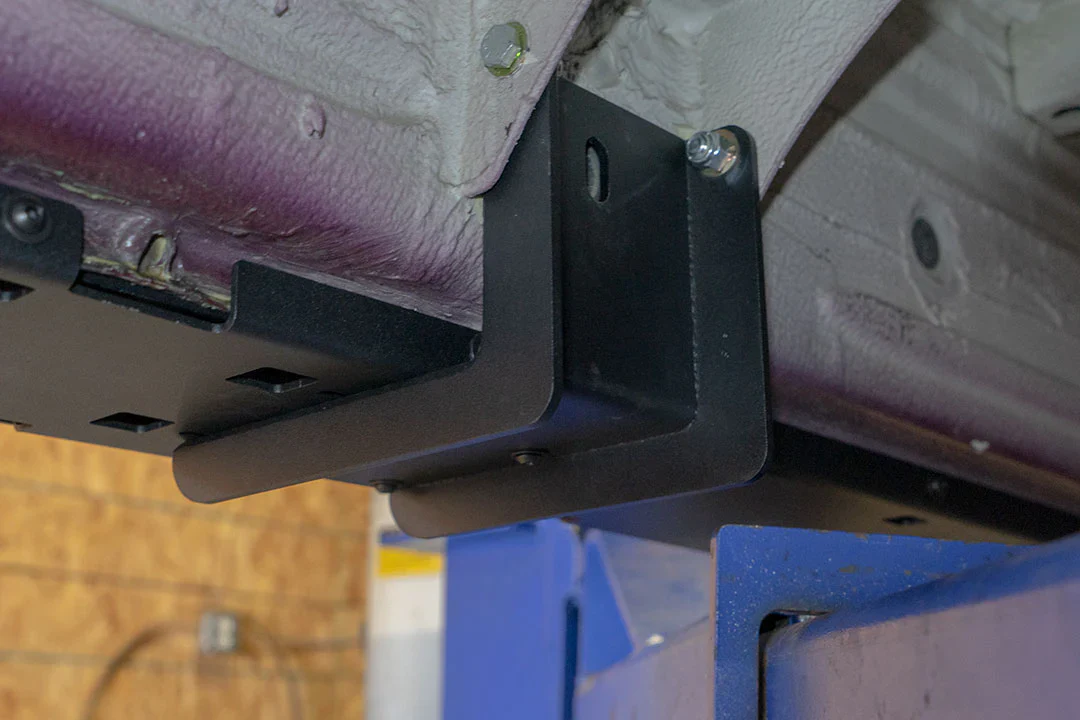

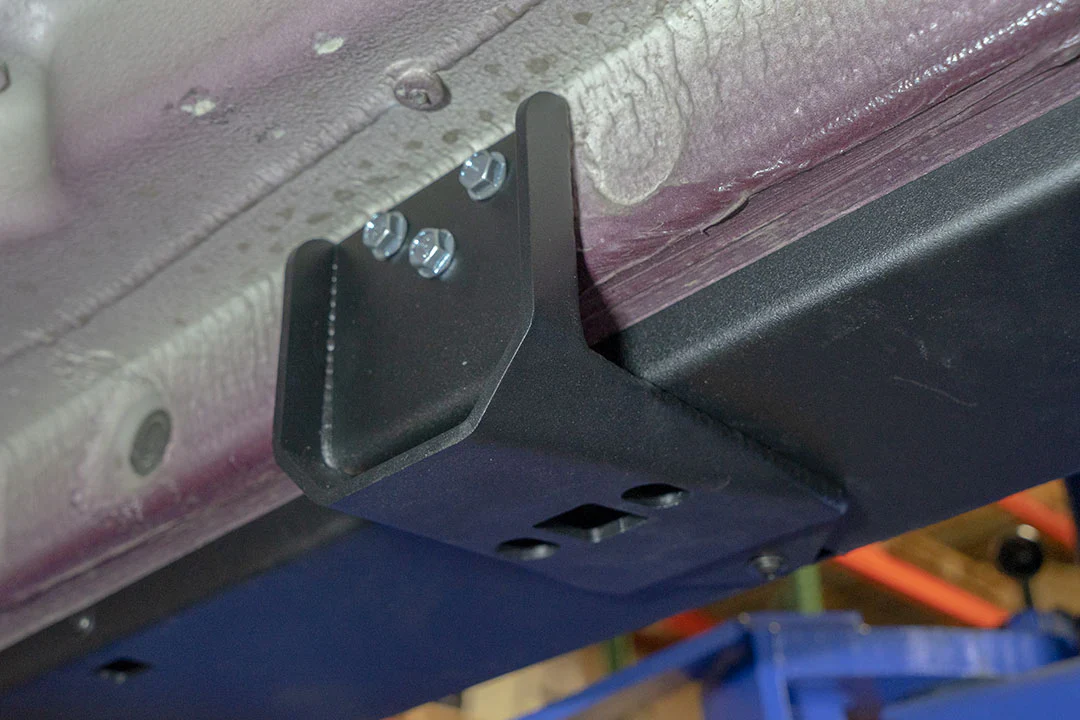

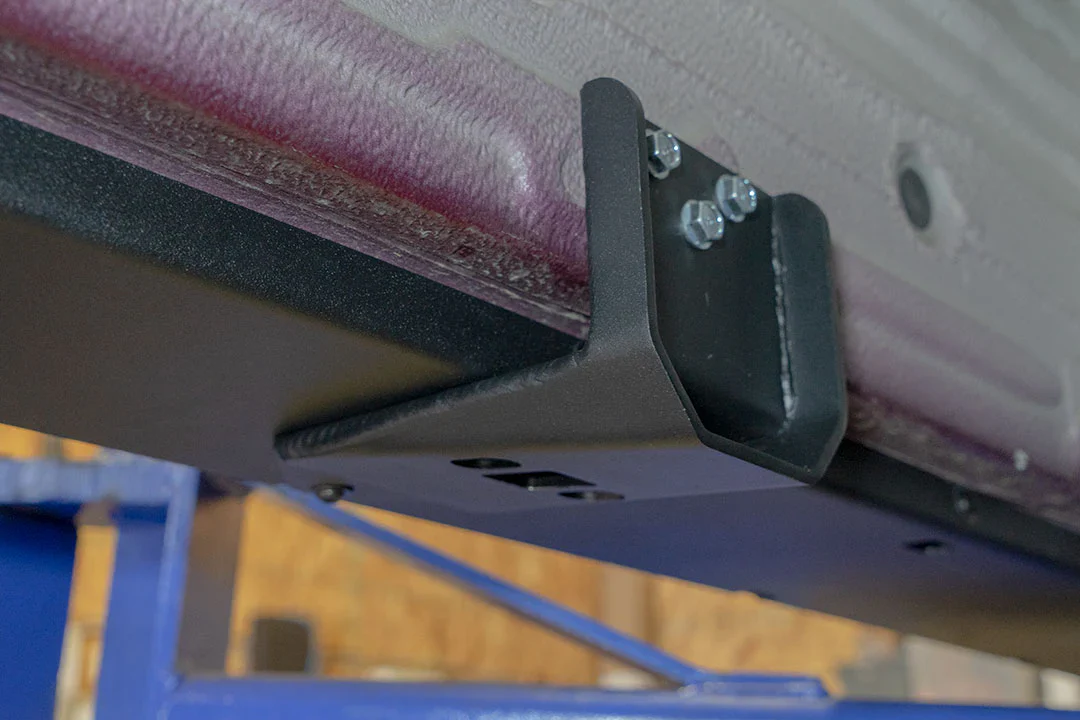

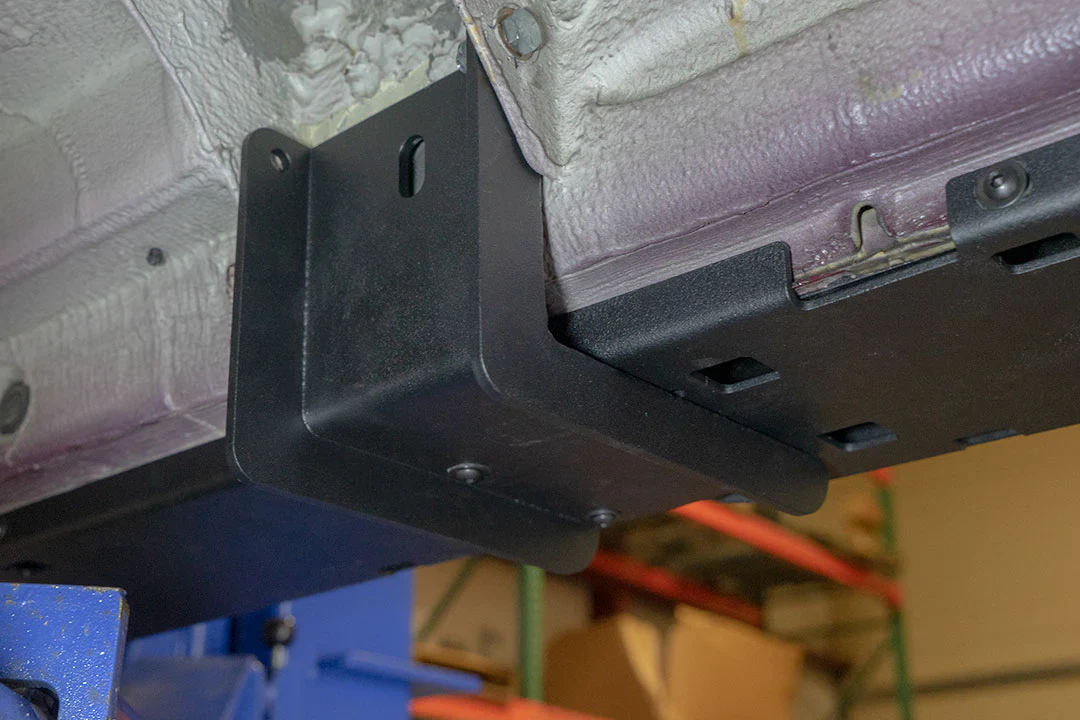

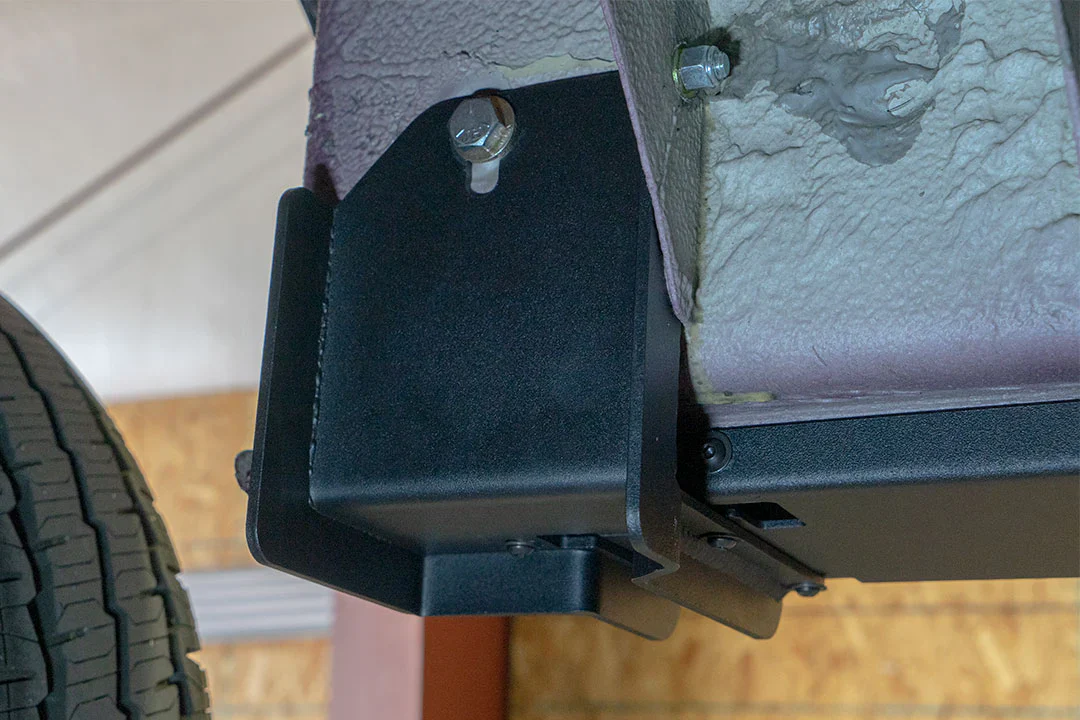

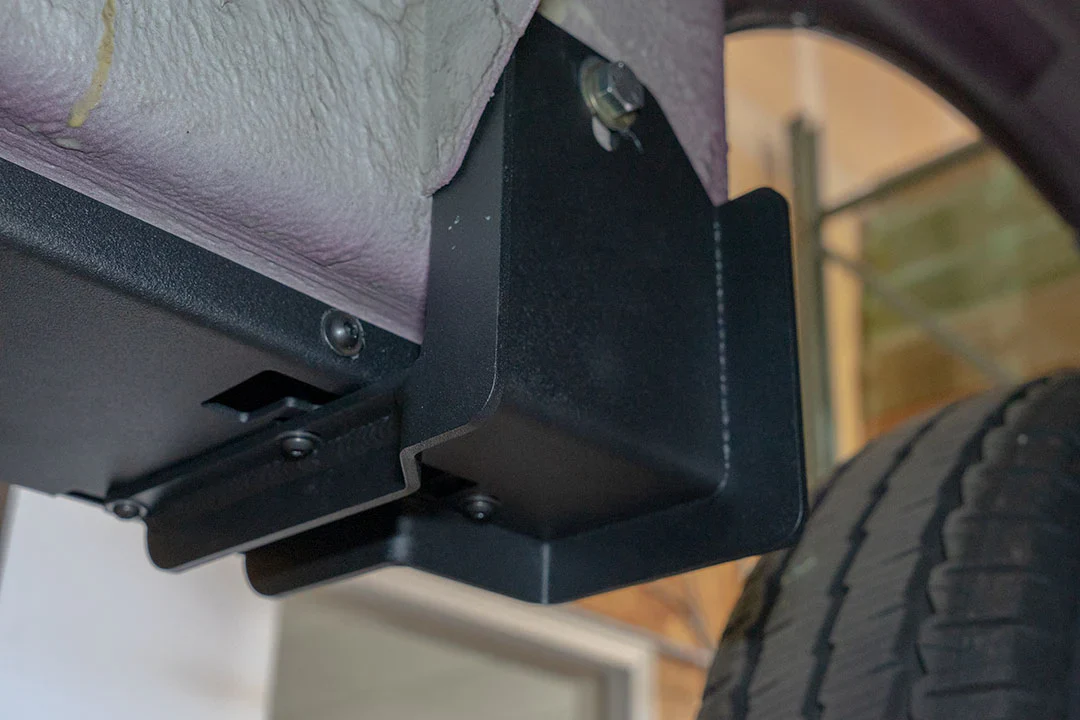

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation.

NOTE: Please specify your van's lift height when ordering(choose lifted/non-lifted in menu above), the front subframe tie ins are specific to lifted and non-lifted vans. Vans with a 2" Van Compass lift require a unique mount, all other known variations use the 'non-lifted' version.

Step Surface Width: 3.5-4" (van body has slight taper at front door sill); 4.375" at rear kick out with doors closed.

** NOT COMPATIBLE with Winnebago Boldt, water tanks are in the way **

*** These ship in a very long crate, non-commercial address may be subject to additional delivery fees. ***

Key Features: Van Compass 2015-2022 Mercedes Sprinter 170" - 4X4 Rocker Guards

• Designed for 2015‚Äì2022 Mercedes Sprinter 2500/3500 4x4 with 170" wheelbase

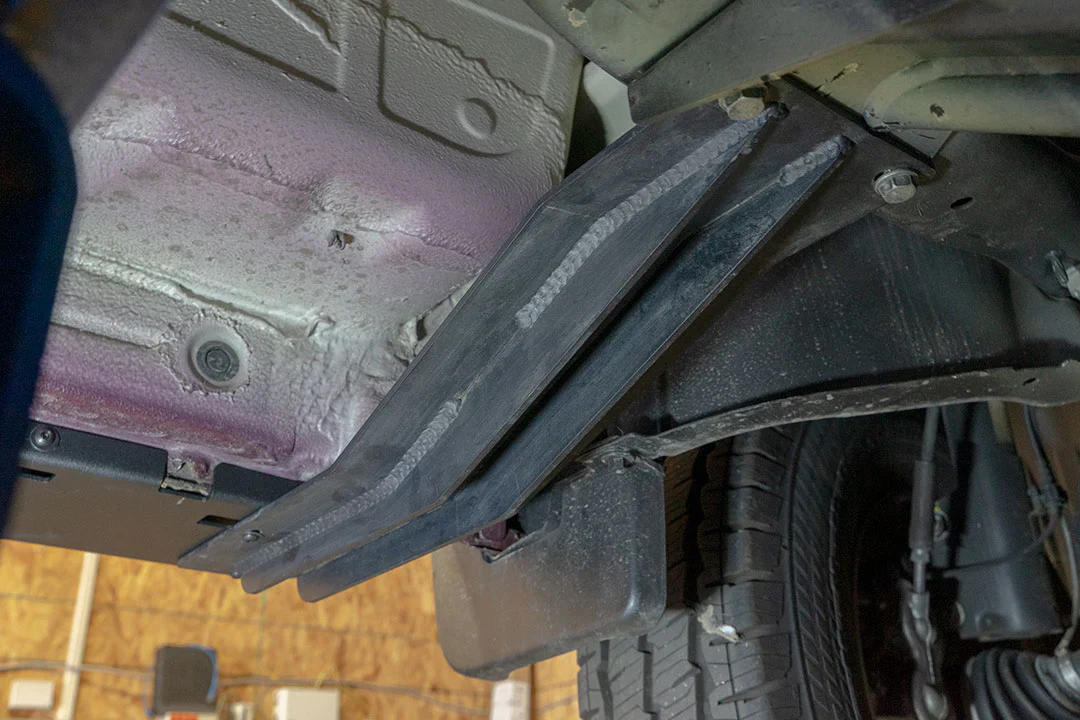

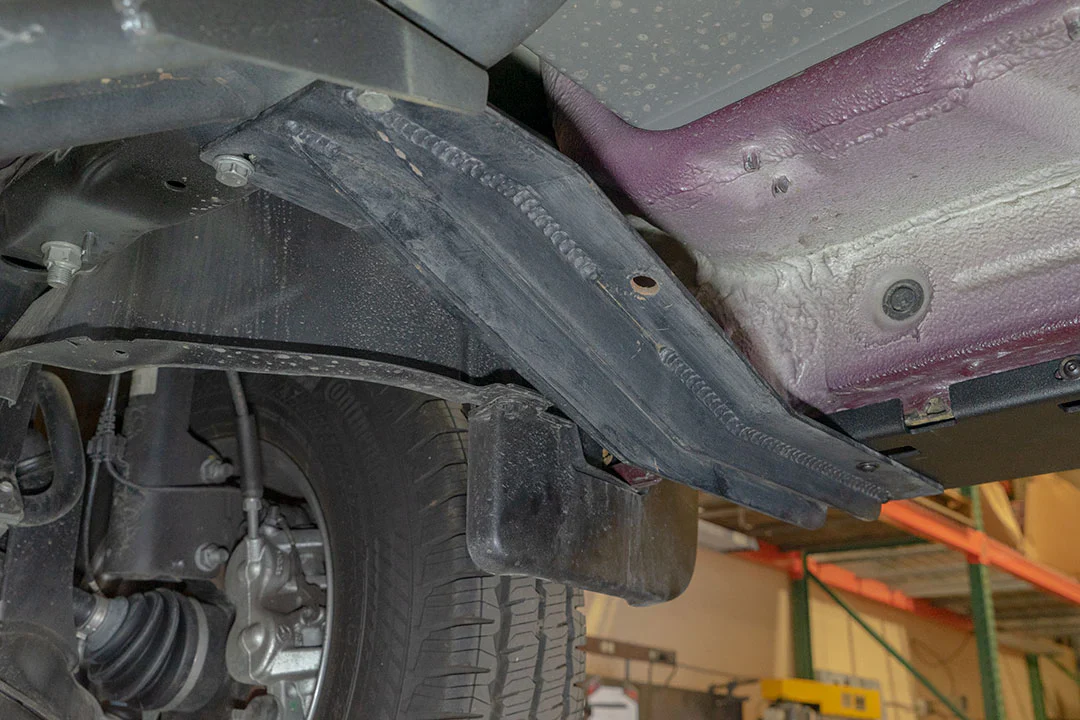

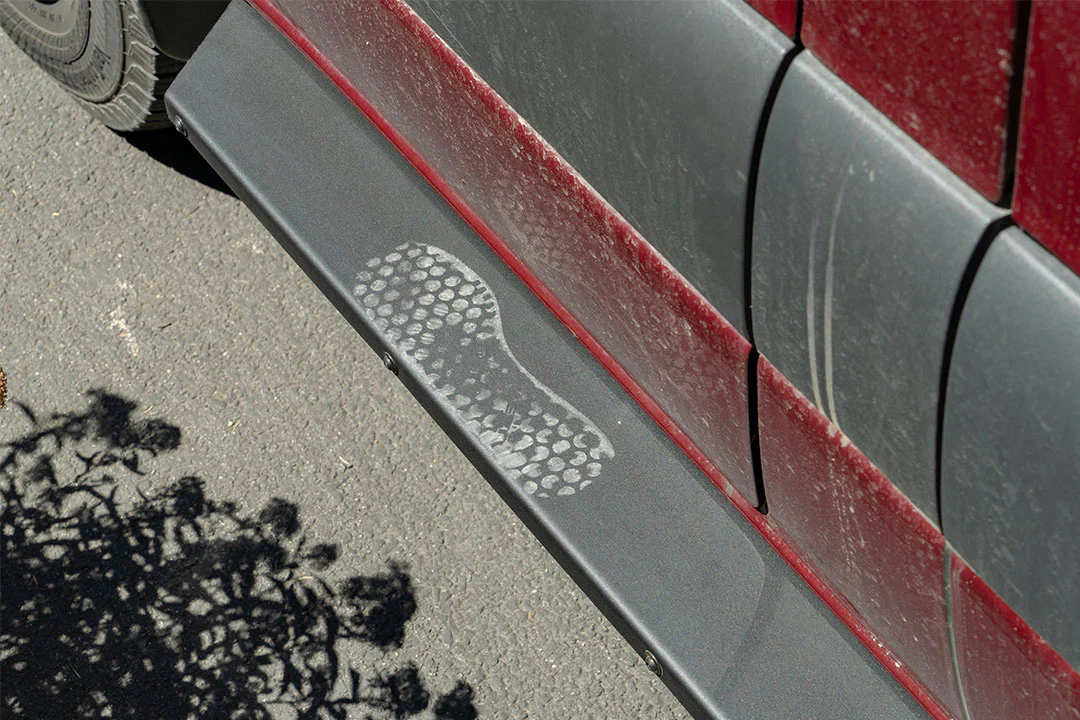

• 4" wide step surface at doors, expanding to 4.375" wide rear kick-out for added trail protection
• Integrated Hi-Lift jack slots for easy and safe off-road recovery and lifting
• 1/8" thick steel step surfaces and 3/16" thick steel frame mounts for maximum durability
• Stainless steel hardware included for corrosion resistance
• Powder coated for long-lasting durability and clean appearance
• 100% bolt-on frame mounting with required drilling at the pinch seam
• Made in the USA

What's Included?

• Rocker Guard step plates, 1/8" Steel, Black Powdercoat
• Front, 2x Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
• Stainless Mounting hardware with AL2000 black finish for step plates

Fitment Guide

MODEL: SPRINTER 2500 and 3500

YEAR: 2015-2022

DRIVE TYPE: 4X4

NOTE: Not compatible with Winnebago BOLDT

NOTE: May be installed on a 2WD when equipped with a Striker lift kit. Select non-lifted 4x4 height sliders.
